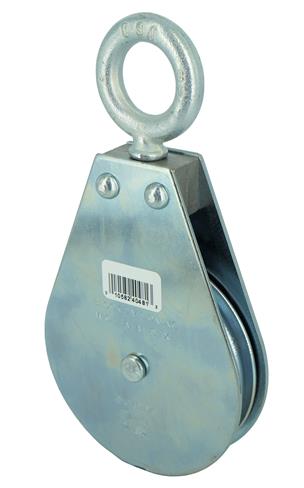

3.0" Swivel Eye Pulley w/Snatch Pin, 1-Line (BD)

Browse

Item #: 11-EBDG017

Durable 1-line swivel eye pulley block featuring a zinc electroplated finish and an oil-impregnated bushing. Snatch pin allows sheave to be removed from the block body. Made in the USA by Block Division.

Key specs:

3.0” sheave outside diameter
1/4" maximum cable/rope diameter
7/8" interior eye diameter
800 lbs. working load capacity

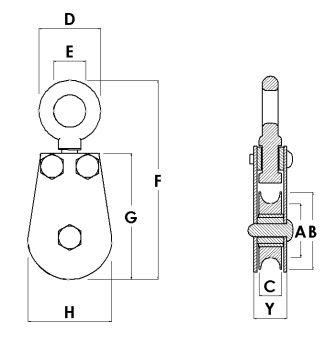

Below are the key dimensions noted in the secondary product image to the left:

A - 2-1/2"
B - 3"
C - 7/16"
D - 1-1/2"
E - 7/8"
F - 5-5/8"
G - 4-1/16"
H - 3-1/8"
Y - 3/4"
