Item #:
11-EBDG069

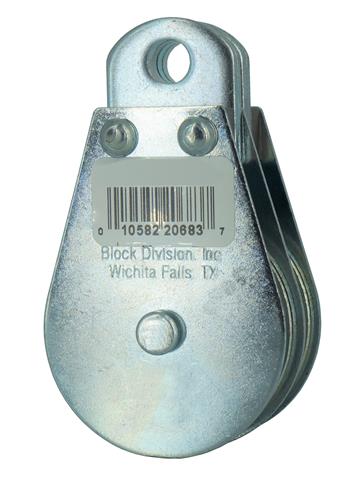

5.0" Fixed Eye Pulley w/Snatch Pin, 2-Line (BD)
Durable 2-line fixed eye pulley block featuring a zinc electroplated finish and an oil-impregnated bushing. Snatch pin allows sheave to be removed from the block body. Made in the USA by Block Division.
Key specs:
-
5” sheave outside diameter
-
3/8" maximum cable/rope diameter
-
9/16" interior eye diameter
-
1850 lbs. working load capacity

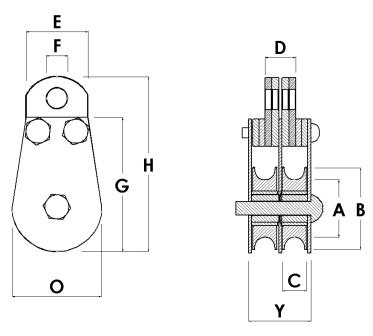

Below are the key dimensions noted in the secondary product image to the left:
-
A - 4-1/4"
-
B - 5"
-
C - 5/8"
-
D - 5/16"
-
E - 1-1/2"
-
F - 9/16"
-
G - 7"
-
H - 8-1/4"
-
O - 5-1/4"
-
Y - 1-13/16"
