Item #:
11-EBDG074

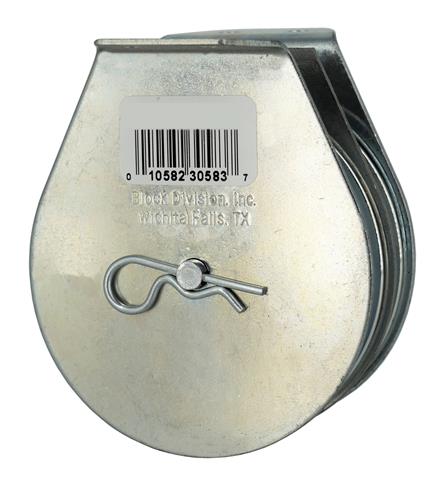

1.5" Flat Mount Pulley w/Snatch Pin, 2-Line (BD)
Durable 2-line flat mount pulley block featuring a zinc electroplated finish and an oil-impregnated bushing. Snatch pin allows sheave to be removed from the block body. Made in the USA by Block Division.
Key specs:
-
1-1/2” sheave outside diameter
-
3/16" maximum cable/rope diameter
-
3/16" diameter mounting holes
-
525 lbs. working load capacity

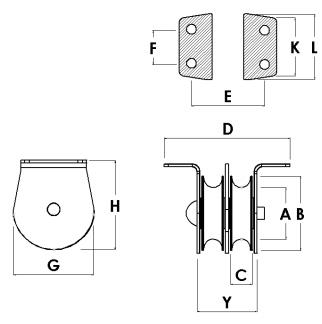

Below are the key dimensions noted in the secondary product image to the left:
-
A - 1"
-
B - 1-1/2"
-
C - 7/16"
-
D - 2-9/16"
-
E - 2"
-
F - 3/4"
-
G - 1-5/8"
-
H - 1-7/8"
-
K - 1-1/8"
-
L - 1-3/8"
-
Y - 1-7/32"
