Item #: 11-EBDG077

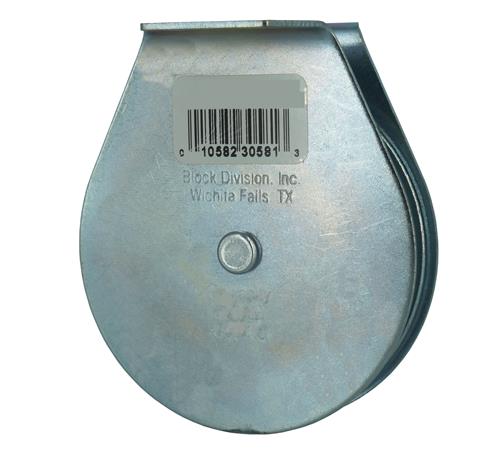

2.0" Flat Mount Pulley w/Snatch Pin, 1-Line (BD)
Durable 1-line flat mount pulley block featuring a zinc electroplated finish and an oil-impregnated bushing.  Snatch pin allows sheave to be removed from the block body.  Made in the USA by Block Division.

Key specs:
  • 2” sheave outside diameter
  • 3/16" maximum cable/rope diameter
  • 3/16" diameter mounting holes
  • 600 lbs. working load capacity

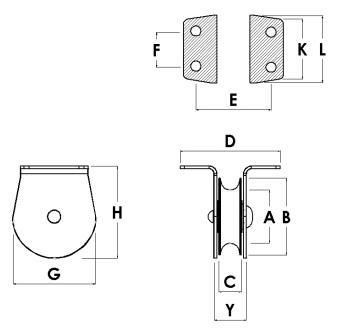

Below are the key dimensions noted in the secondary product image to the left:
  • A - 1-1/2"
  • B - 2"
  • C - 7/16"
  • D - 2"
  • E - 1-7/16"
  • F - 11/16"
  • G - 2-1/8"
  • H - 2-3/8"
  • K - 1-1/8"
  • L - 1-1/2"
  • Y - 5/8"
List Price: $0.00
